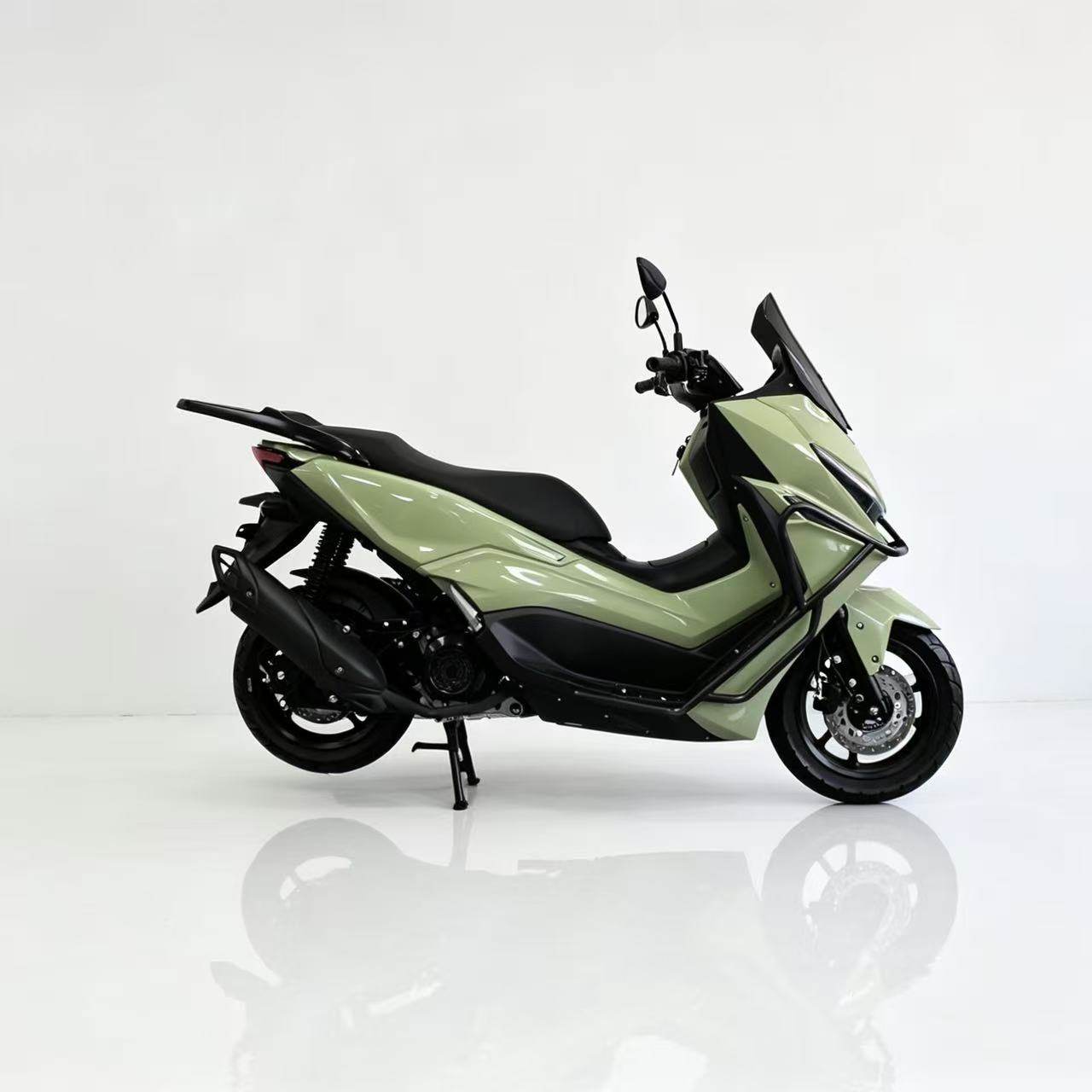

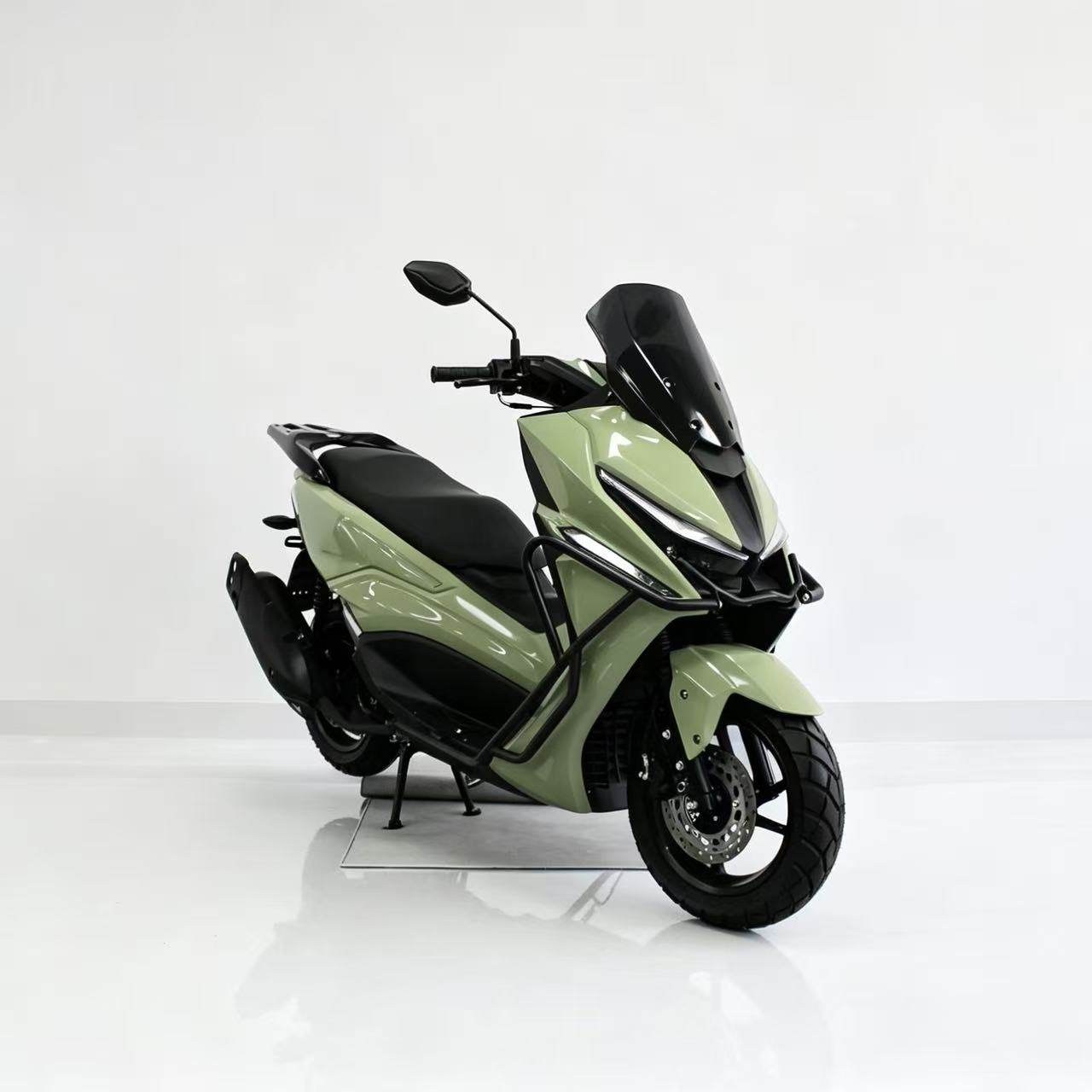

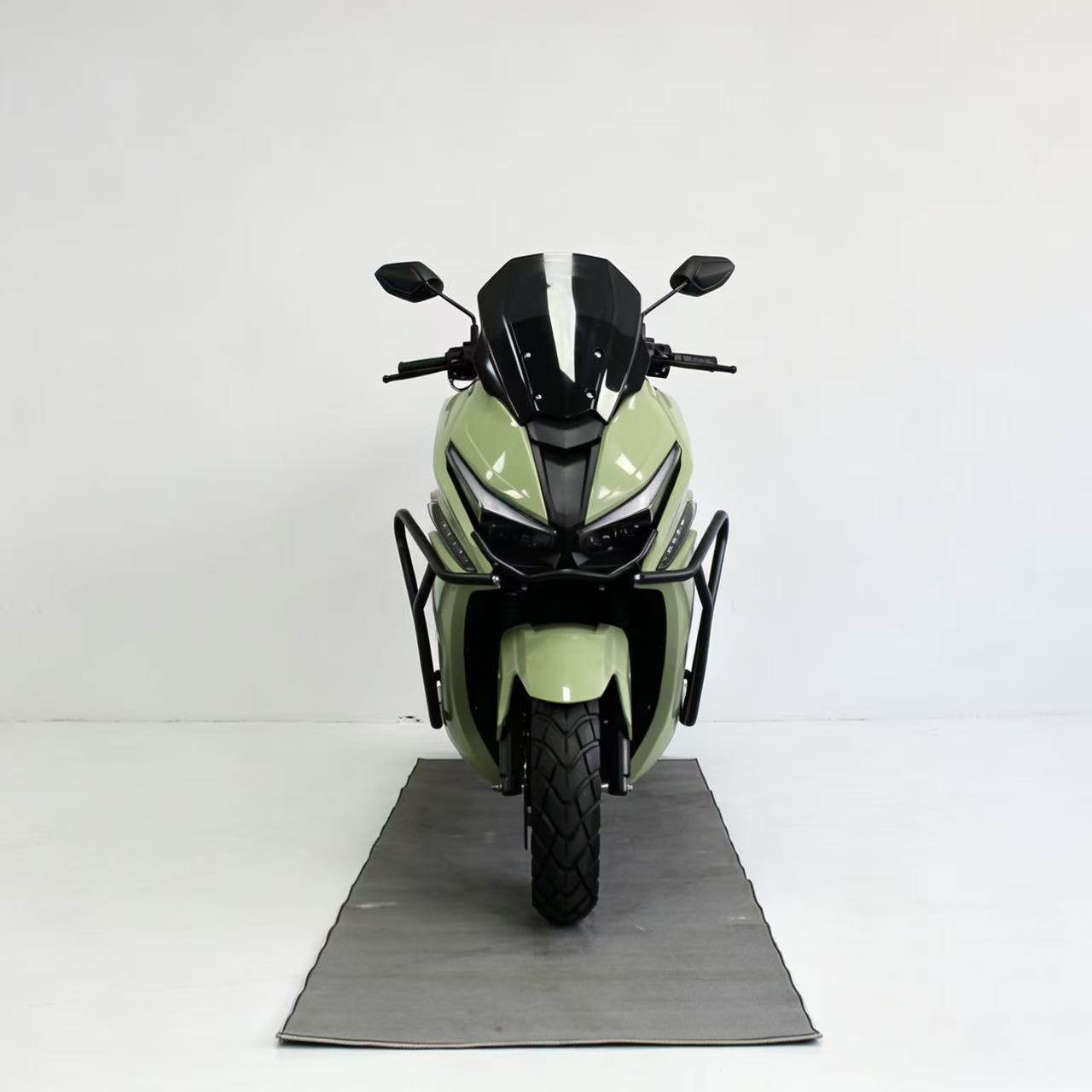

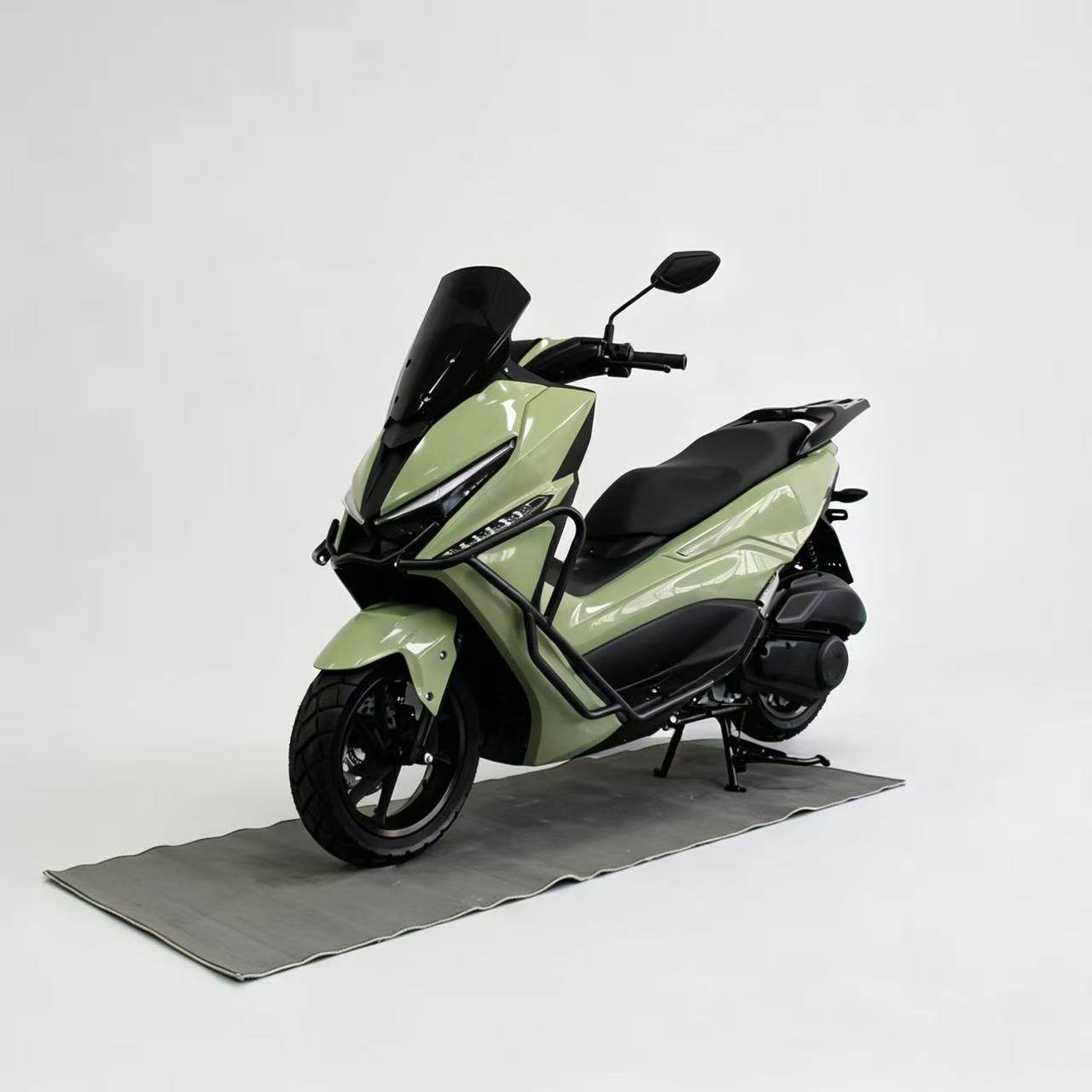

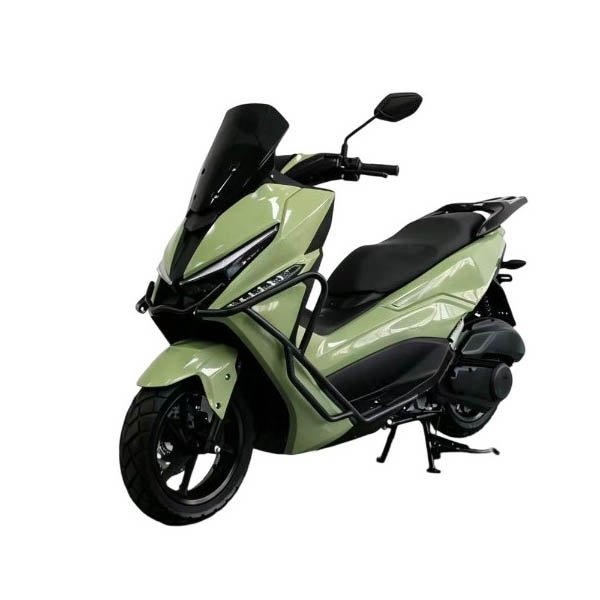

NMAX-3 Scooter Motorcycle

JILANG not only supplies electric off-road bicycles, but also establishes strategic partnerships with dealers who hope to obtain guaranteed profits, operational support, and long-term growth in the rapidly growing electric off-road market.

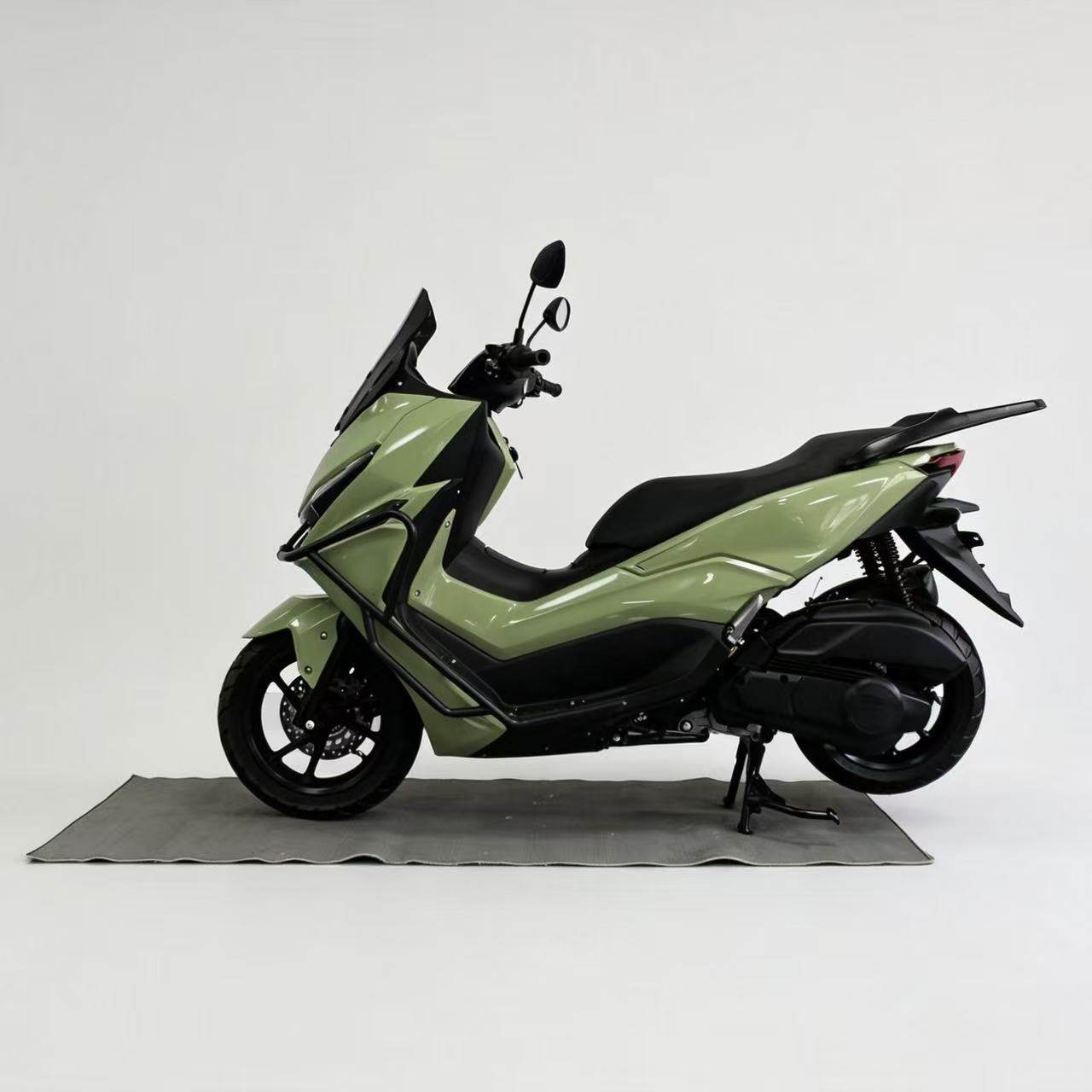

NMAX-3 Scooter Motorcycle
Ride in comfort and style. The NMAX-3 features plush sofa-style seating for relaxed journeys, a high-definition LCD dashboard for clear visibility, and sleek alloy wheels that complete its modern look. Tailor your scooter with your preferred engine power and custom color to match your urban lifestyle.
Send Message

Description

ENGINE TYPE180cc, 4 Stroke
Displacement180.4ml
Engine1 Cylinder, 4 Stroke
Bore & Stroke63×57.9
Cooling SystemAir Cooled
Compression Ratio9.2:1
Fuel feed90#
Max Power( Kw/rpm)10.47/7500
Max Torque(N.M/rpm)14.7/6500
Max Speed120kmph
Ground clearance150mm
Fuel consumption3L/100KM
Drive TrainCVT
IgnitionCDI
TransmissionBelt
Fuel tank capacity10L
Starting SystemElectric+kick start
Front BrakesDisc brake
Rear BrakeDisc brake
Front suspension2 Hydraulic Suspension
Rear suspension2 Hydraulic Suspension
Front wheels130/60-13
Rear wheels130/70-13
Wheel Base1550 mm
Seat Height790 mm
Payload150kg
Net Weight130kg
Gross Weight150kg
Packing typeSteel + Carton
Packing size1850*570*840
20' container24units
40' HQ container75units

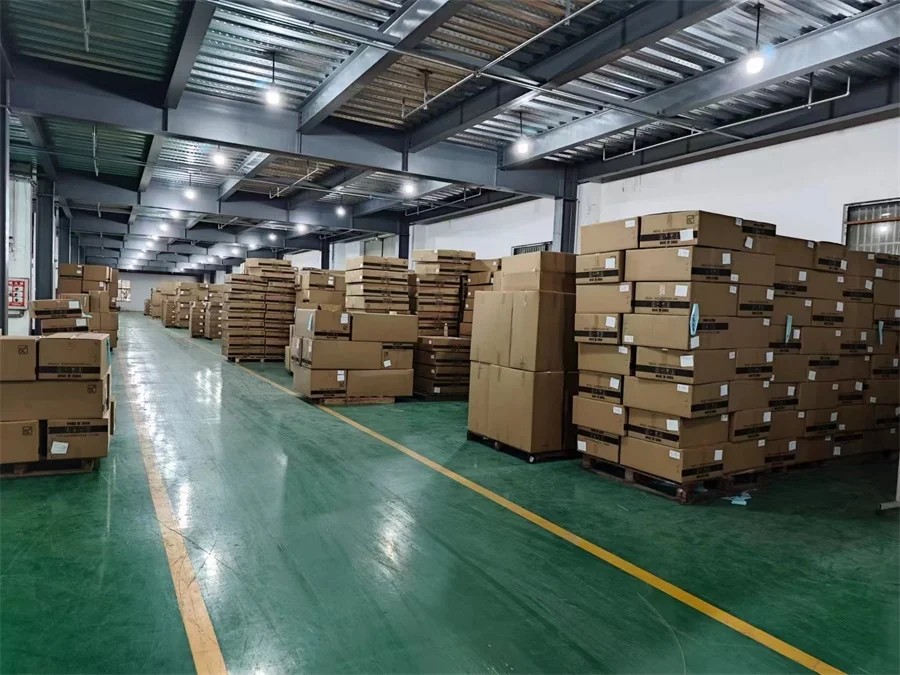

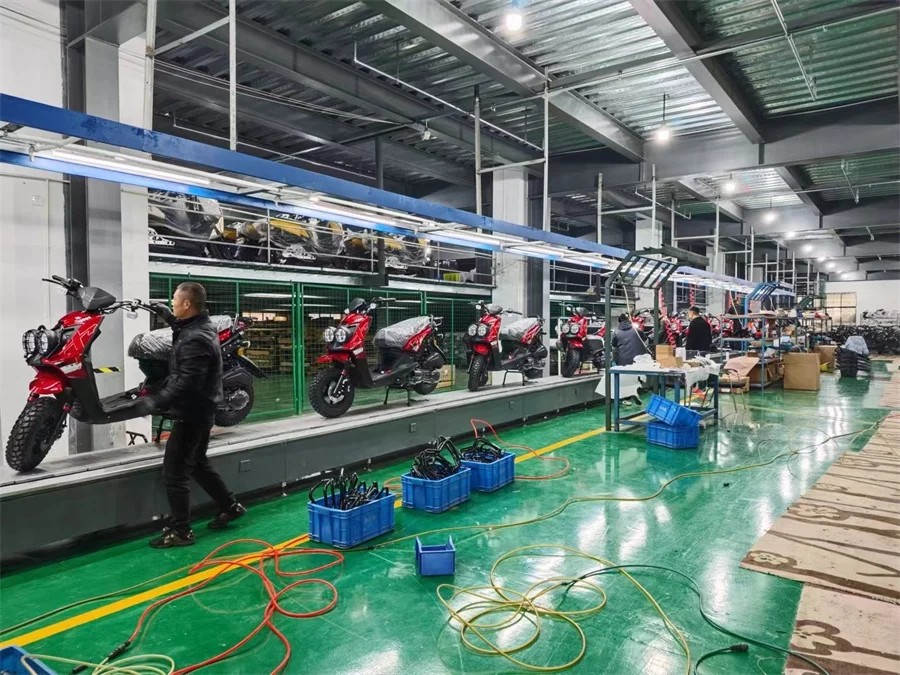

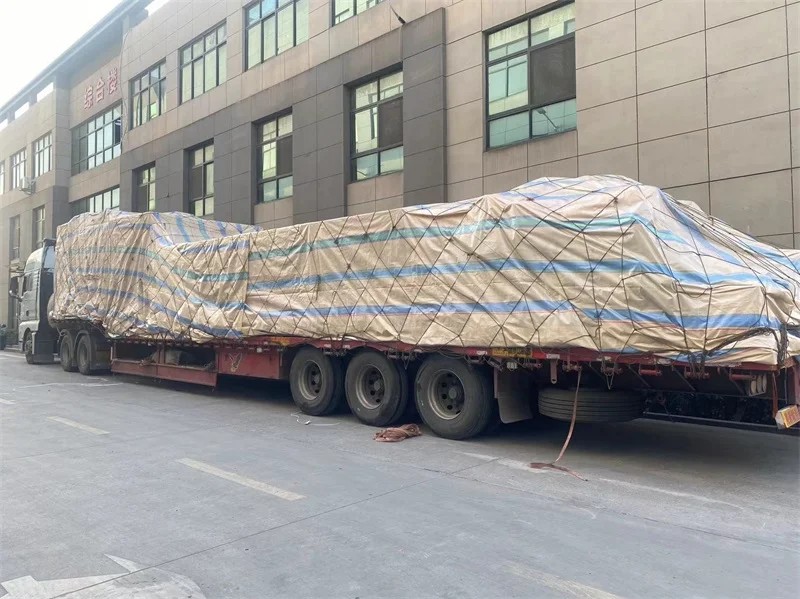

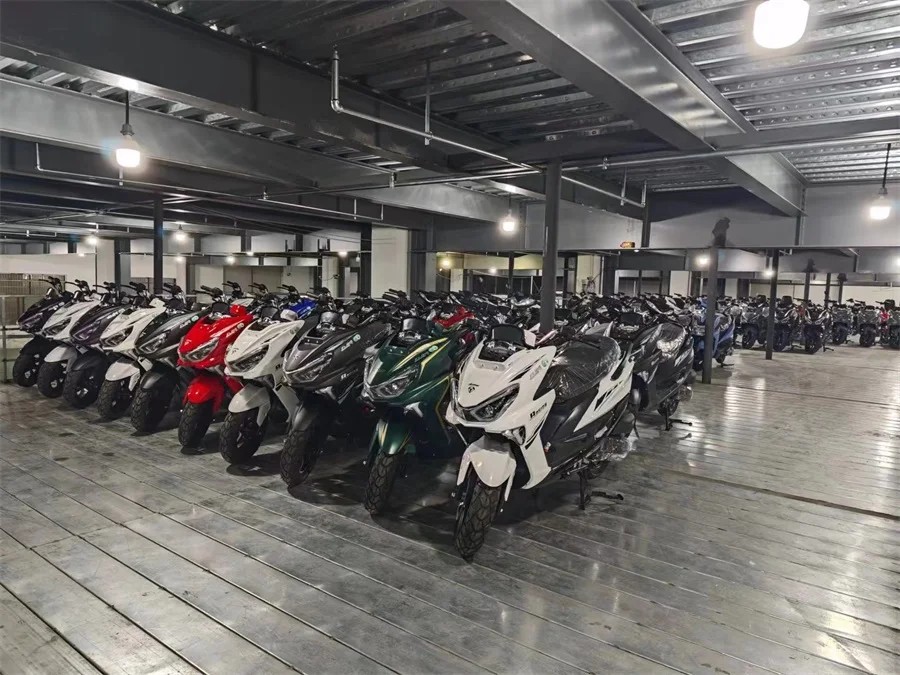

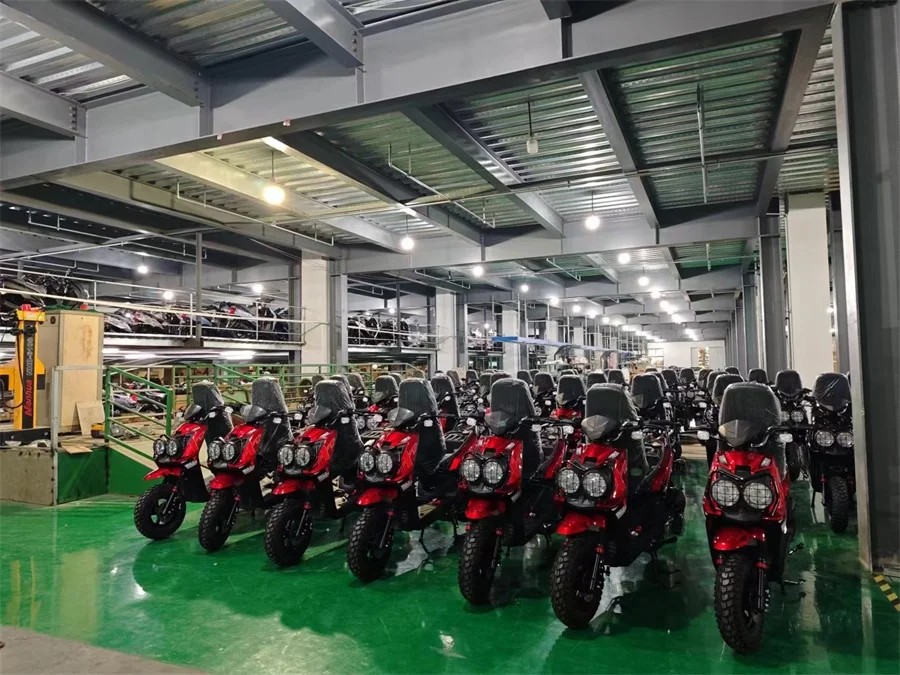

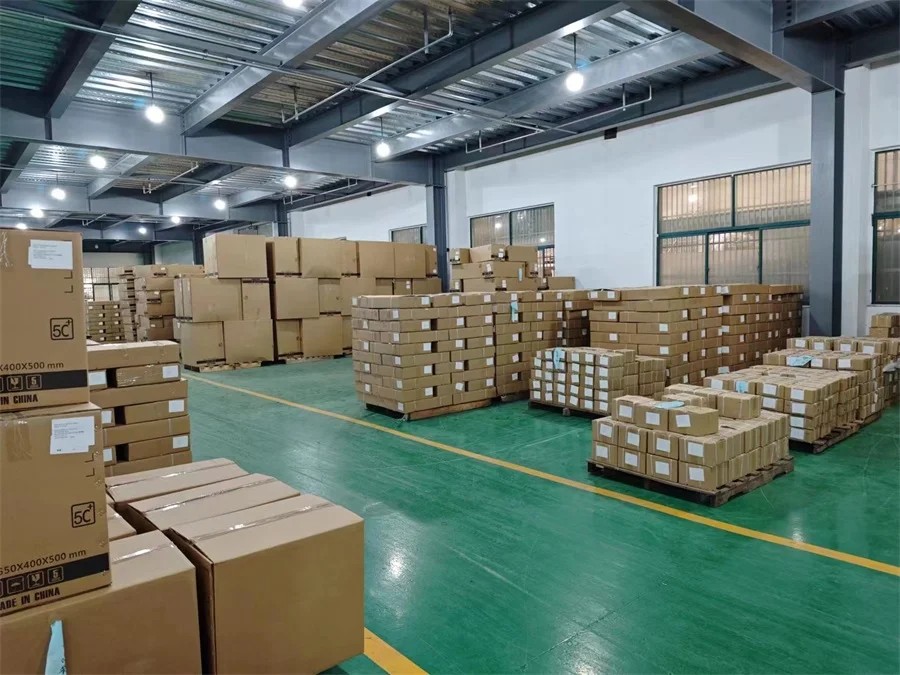

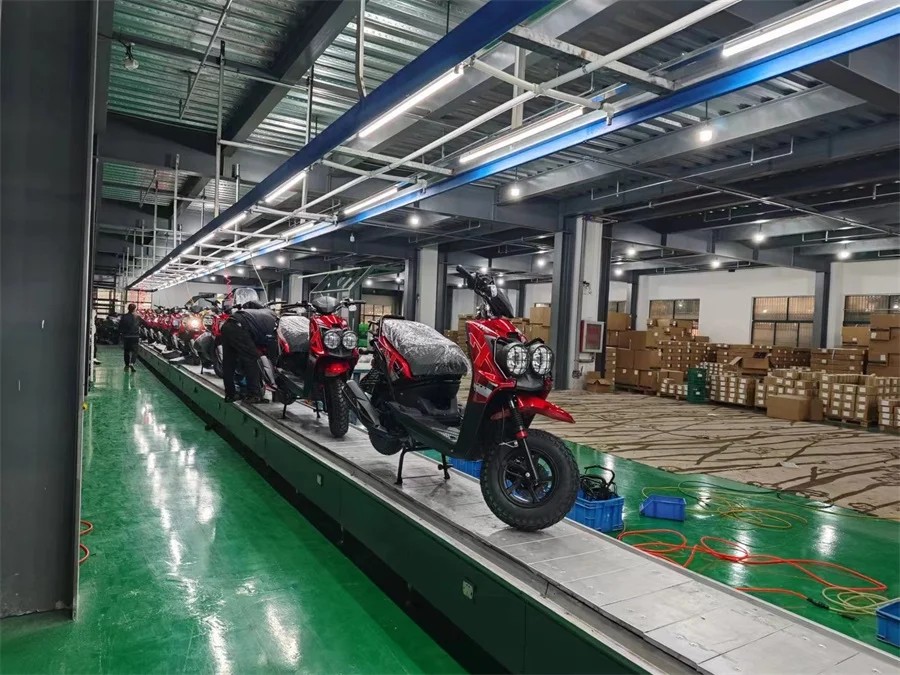

Production and delivery
